TinkerLab | Audiovisualiser - Week 2

March 20 - 23, 2023

This week, we obtained additional equipment such as a new soldering iron, metal plate, and new thin wires. We divided into two groups based on Ramadan timings: Icen, Princelle, and Nehan worked on Mondays, while Frankie, Louis, and Nella worked on Tuesdays.

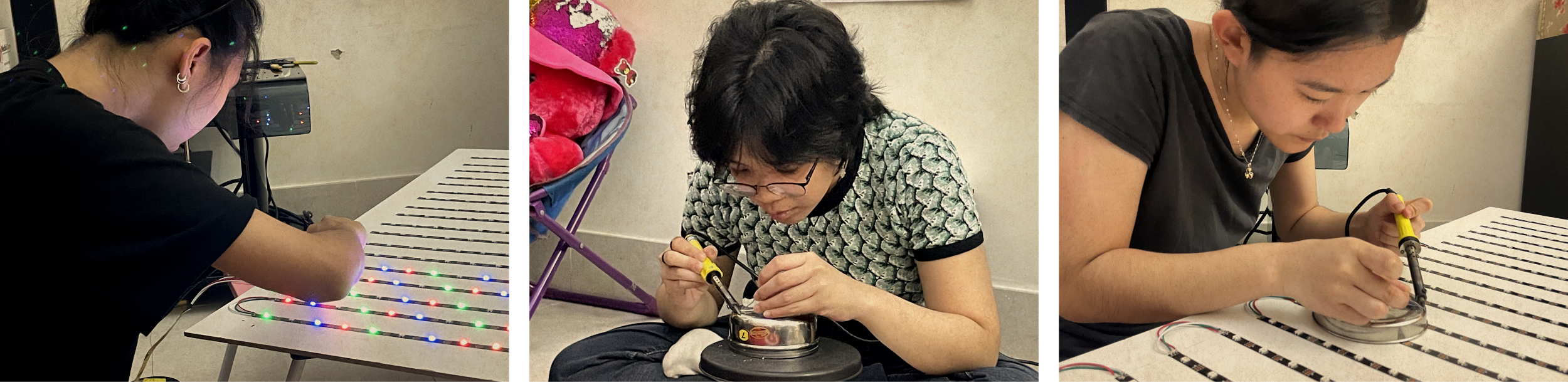

We were finally getting the hang of soldering. With Nella and I taking turns with tinning the wires, and Franchesca soldering the wires to the LED Strips, we managed to finish soldering the LED circuit. However, we encountered an issue: the RGB series only partially worked, with only the red light indicating that the circuit was functional.

Moreover, we started preparing other components such as wires, foam, and buttons, ensuring everything was ready for the next steps.

‍
